CARRYING IDLER ROLLERS
Troughing carrying idlers are used to carry conveyor belt and support bulk materials on conveyor belt working surface.
We manufacture Troughing idler Frames and Roller For:
- Conveyor Belt Width : 400mm to 2200mm
- Roller Shell Diameter : 60mm to 168mm
- Shaft Bearing Diameter : 20mm to 45mm
MATERIAL OF CONSTRUCTION
IDLER PIPE
AS PER IS 9295
IDLER SHAFT
40C8 as per IS 1570
BEARING HOUSING
AS PER IS 1079
SEAL SETS
NYLON – 6 AS PER IS 13463
DUST CAP
AS PER IS 513
CIRCLIPS
AS PER IS 3075 (Part 3)
TYPES OF SHAFT END ARRANGEMENTS
PRODUCTS WE KEEP IN STOCK

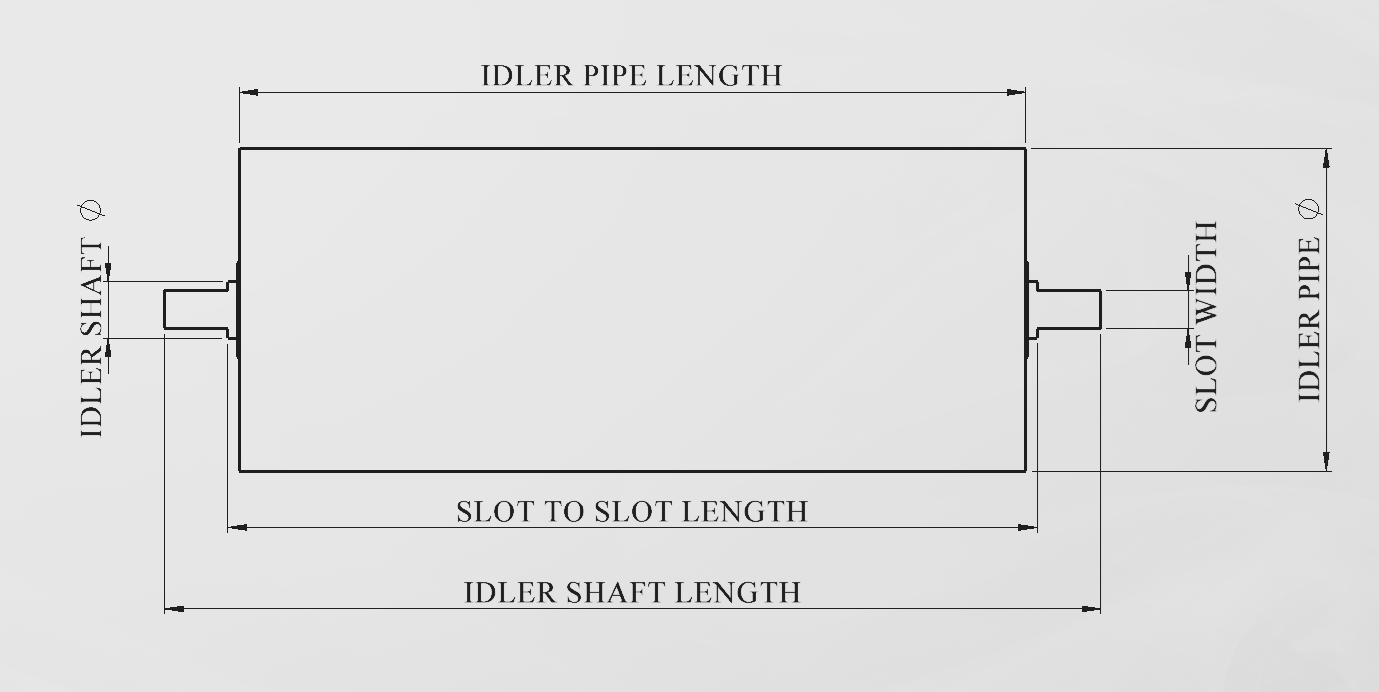

OPEN SLOT TROUGHING CARRYING IDLER ROLLERS
| S.L. | OEW MODEL NUMBER | PIPE DIAMETER (mm) | PIPE LENGTH (mm) | SHAFT DIAMETER (mm) | SHAFT L (mm) | SLOT TO SLOT (mm) |
|---|---|---|---|---|---|---|
| 1 | SKT # 2413 | 76.1 | 200/8in | 232mm/9in | 208 | |
| 2 | SKT # 2414 | 76.1 | 229/9in | 266/10.5in | 237 | |
| 3 | SKT # 2415 | 76.1 | 250/10in | 282/11in | 258 | |
| 4 | SKT # 2416 | 76.1 | 279/11in | 332/12.5in | 287 | |
| 5 | SKT # 2417 | 76.1 | 315/12.5in | 347/13.5in | 323 | |
| 6 | SKT # 1793 | 88.9 | 200/8in | 232/9in | 208 | |
| 7 | SKT # 2419 | 88.9 | 229/9in | 266/10.5in | 237 | |
| 8 | SKT # 1794 | 88.9 | 250/10in | 282/11in | 258 | |
| 9 | SKT # 2422 | 88.9 | 265/10.5in | 311/12.25in | 273 | |
| 10 | SKT # 1931 | 88.9 | 279/11in | 311/12.25in | 287 | |
| 11 | SKT # 2423 | 88.9 | 279/11in | 332/13in | 287 | |
| 12 | SKT # 2372 | 88.9 | 300/12in | 347/13.5in | 308 | |
| 13 | SKT # 1795 | 88.9 | 315/12.5in | 347/13.5in | 323 | |
| 14 | SKT # 1798 | 114.3 | 200/8in | 232/9in | 208 | |
| 15 | SKT # 2425 | 114.3 | 229/9in | 266/10.5in | 237 | |
| 16 | SKT # 1799 | 114.3 | 250/10in | 282/11in | 258 | |
| 17 | SKT # 1962 | 114.3 | 279/11in | 311/12.25in | 287 | |
| 18 | SKT #2553 | 114.3 | 279/11in | 332/13in | 287 | |
| 19 | SKT # 1844 | 114.3 | 300/12in | 347/13.5in | 308 | |
| 20 | SKT # 1800 | 114.3 | 315/12.5in | 347/13.5in | 323 | |
| 21 | SKT # 1801 | 114.3 | 380/15in | 412/16.25in | 388 |
GARLAND TROUGHING CARRYING IDLER ROLLERS
| S.L. | OEW MODEL NUMBER | PIPE DIAMETER (mm) | PIPE LENGTH (mm) | SHAFT DIAMETER (mm) | SHAFT L (mm) | HOLE TO HOLE (mm) | HOLE DIA (mm) |
|---|---|---|---|---|---|---|---|
| 1 | SKT # 2294 | 114.3 | 200 | 20 | 250 | 232 | 8 |
| 2 | SKT # 2296 | 114.3 | 250 | 20 | 300 | 282 | 8 |
| 3 | SKT # 2298 | 114.3 | 380 | 20 | 430 | 412 | 8 |
